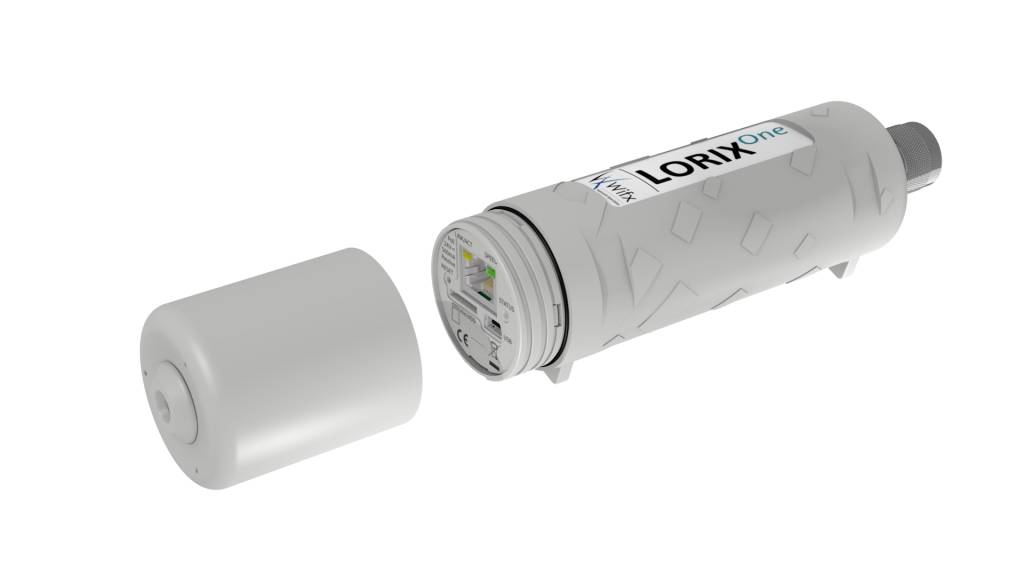

Lorix One LoRaWAN IOT Gateway

The first low cost LoRaWAN IoT gateway pre built with SSH Server, Python, LORIOT Cloud App, The Things Network Cloud App, Semtech Packet Forwarder.


Technology

Features

  • Main System: CPU - ARM Cortex A5 600 Mhz; RAM 128 MB DDR2 200Mhz, 512 MB NAND Flash with PMECC
  • LORA/RF System: SX1301 gateway chip SPI based, 8 channels, 49 demodulators @868 Mhz; RX Sensititvity: -140dB-m(LoRa)/-110dBM(FSK); TX Power: 27dBm

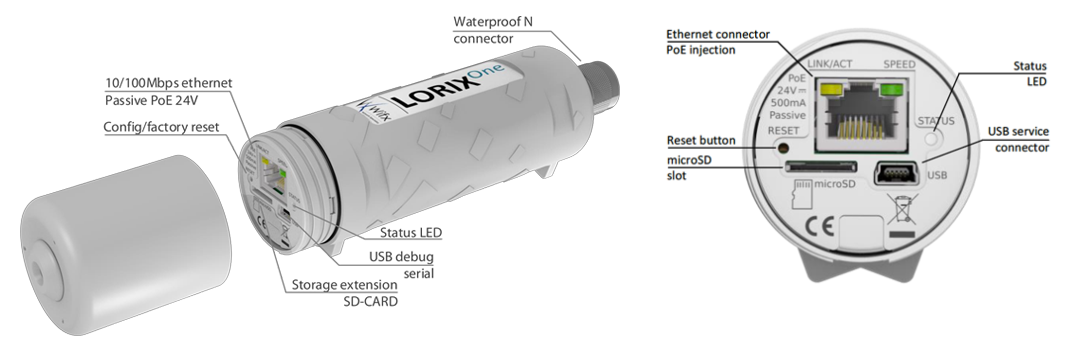

  • Connectivity: Ethernet 10/100Mbps with passive PoE 24VDC, USB Interface providing serial interface to manage/update the gateway
  • Security: IP43 and IP65 versions
  • Antenna: Outdoor IP65 500mm (19.68 inches)antenna @ 4.15dBi, Indoor 200mm(7.87 inches) inclinable antenna @2dBi
  • Storage: SD Card to extend/replace internal flash
